Architecture of the Multiplayer

This is the server used for the multiplayer in the overworld. It consists of a REST API and WebSocket support for real-time communication. The repository can be found here.

Purpose

Implementing multiplayer functionality in the overworld enhances engagement and social interaction by allowing players to see each other in real time. The system synchronizes the position and outfit of each player in the same course, encouraging exploration of the overworld and collaboration in minigames. By enabling users to identify and connect with others, Gamify-IT promotes engagement and sustained participation while maintaining performance efficiency.

Table of Contents

• Architecture Design

• Used Technologies

  • Client

  • Server

• Component Description

  • Server

    • General Structure

    • REST API

    • WebSocket

  • Client

    • Main Scripts

      • MultiplayerManager.cs

      • EventManager.cs

    • User Interface

  • Network Messages

    • Class Diagram

    • Protocol Data Unit (PDU)

  • Typical Message Exchange Sequence

• Development

  • Getting Started

    • Overworld

    • multiplayer-backend

  • Build and Run

• Tests

  • Unique ID generation

• Known Design Flaws

Architecture Design

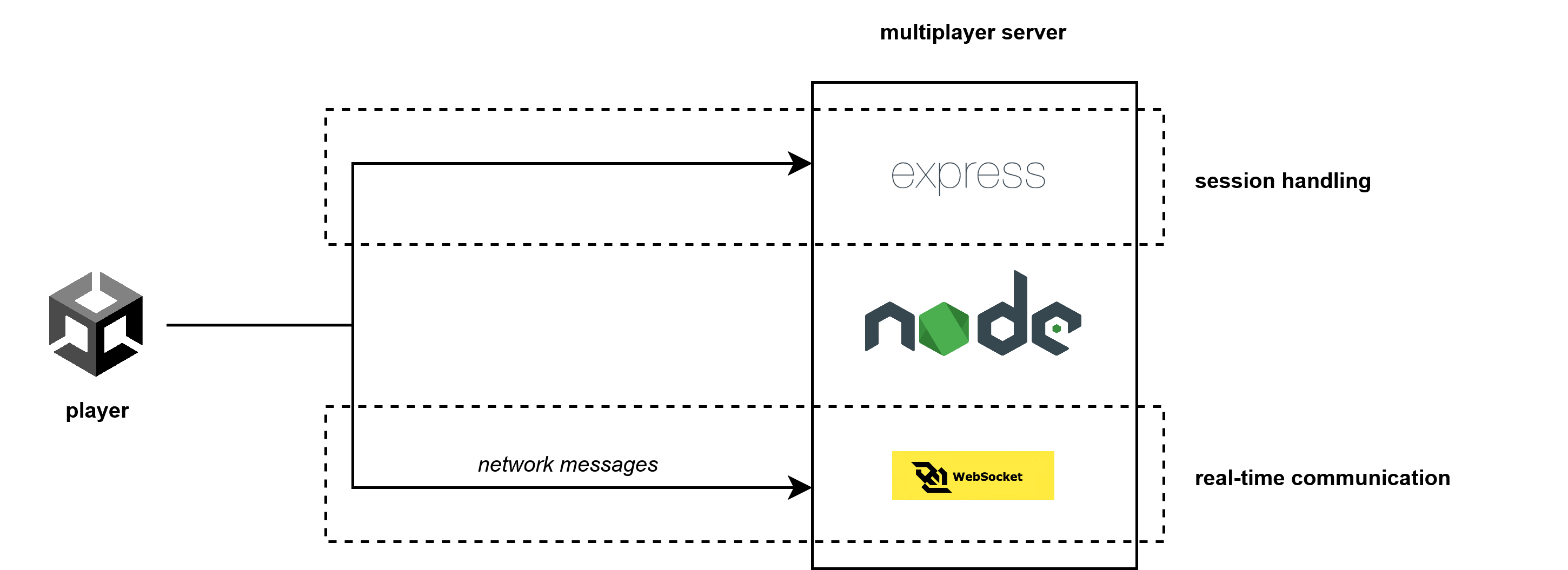

The overall architecture of the multiplayer is shown below.

Used Technologies

Client

The same technologies are used as in the overworld:

• Unity and C#

• WebGL (build)

Server

The server is built using Node.js and consists of a

• REST API to manage session requests using Express.js

• WebSocket for real-time communication using ws

Component Description

Here you can find a detailed description how each component is designed and works as well as where to find the code and and how to implement new features. It should be read carefully before changing the current code.

Server

The multiplayer server has its own repository. Its purpose is to handle client sessions as well as processing and broadcasting messages to players of the same course. That is, it consists of two parts, the WebSocket and the REST API.

General Structure

• authentication: contains the JWT token authentication

• clients: contains the b2b (backend-2-backend) communication methods

• controllers: contains the behavior behind a server route

• data: contains the server’s data structures

• routes: contains the server routes definition

• services:

• utils: contains utility functions like the id generation

• websocket: contains the websocket functionality

REST API

The REST API currently accepts a POST request for establishing a new session and is accessible under api/v1/join/. For that, the user needs to send a ConnectionData object.
Note: To create a WebSocket connection, a client must register itself successfully via the REST API.

WebSocket

The WebSocket handles the message exchange between clients. It supports the following functionality:

• client id retrieval

• (dis)connection handling

• timeout handling

• course broadcasting

If a client does not send any messages for 50 seconds, its WebSocket connection will be closed (= timeout), but it can reconnect using the same client ID. However, if a client actively disconnects (e.g., by quitting multiplayer/overworld or closing the browser), it will be removed permanently with no option to reconnect.

Client

The code for the multiplayer can be found in the multiplayer folder of the overworld repository.
A client is a player and can start a new multiplayer session by sending a post request to the server. As a response, the client receives a unique session id and opens a WebSocket connection to send messages in order to synchronize position and outfit.

Main Scripts

MultiplayerManager.cs

The MultiplayerManager.cs script manages all client-side multiplayer content.
It consists of six regions:

• websocket connection to establish and manage the WebSocket connection

• time-based routines like checking inactivity

• message sending for serializing and sending different types of messages

• message processing for deserializing messages and process their content

• multiplayer session handling like pausing, resuming or quitting a session

• remote player handling to update the physics and appearance of other (remote) players

EventManager.cs

The EventManager.cs defines a generic event which is used for an event-driven communication. Each section in the code that requires data-synchronizing uses the trigger event to send a network message of a certain type.

User Interface

There are two multiplayer-related UI elements in the overworld:

• Multiplayer Menu in the pause menu to start and quits sessions, provides a detailed overview

• Multiplayer HUD in the bottom left corner shows the connection state

Their logic is handled in the MultiplayerMenu and MultiplayerHUD script.

Network Messages

The data sent via the WebSocket is called network messages. Their overall structure is defined in the abstract NetworkMessage class and is further extended by the children classes in order to consider specific behavior. Currently, the multiplayer supports sending network messages of seven different types.
Below, you can find a detailed overview how the messages are defined.

Note: After 50 seconds of inactivity, i.e., no messages are sent, the player’s connection is timed out with the possibility to reconnect. However, if the player quits the game or manually terminates the multiplayer, there will be no reconnection possible.

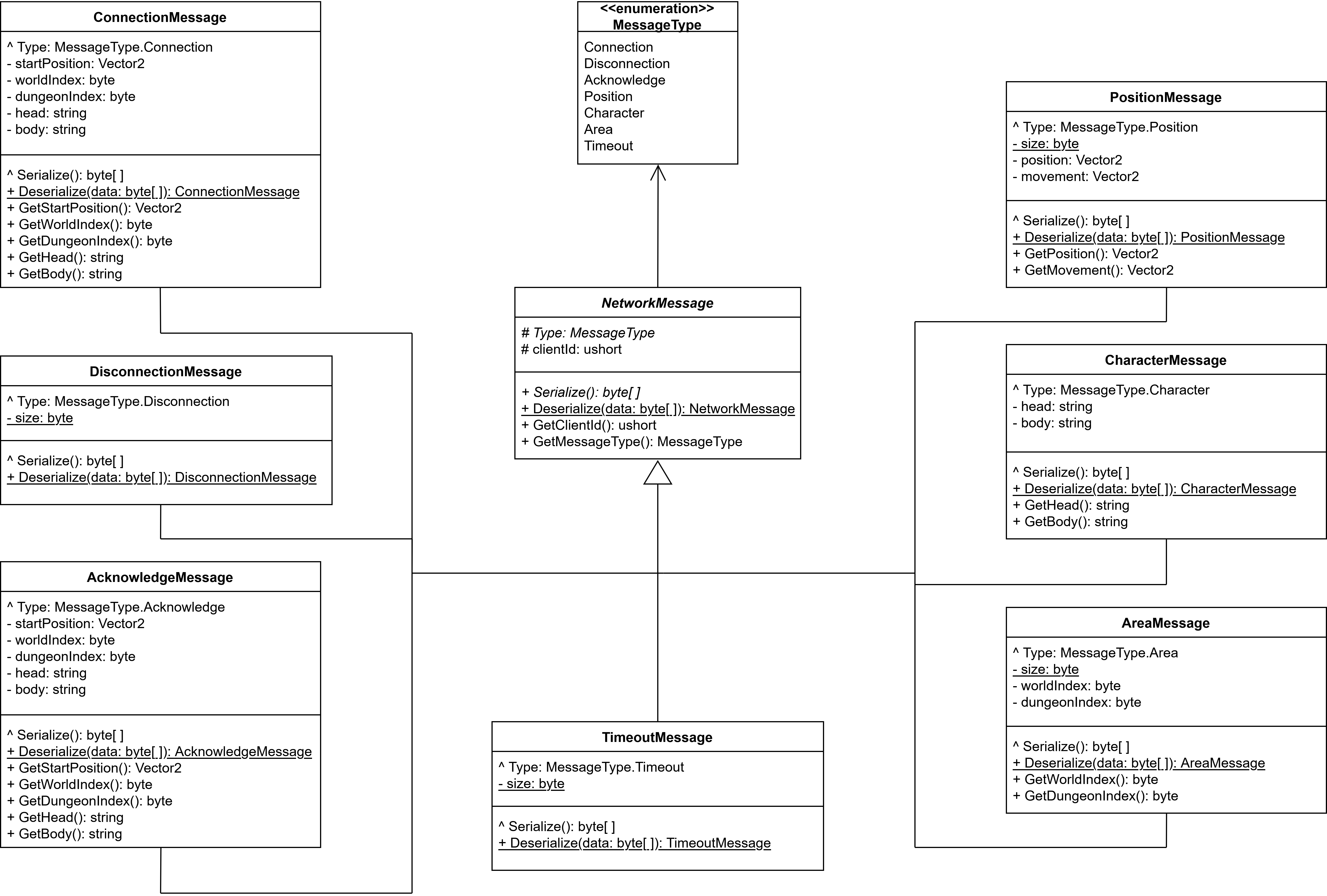

Class Diagram

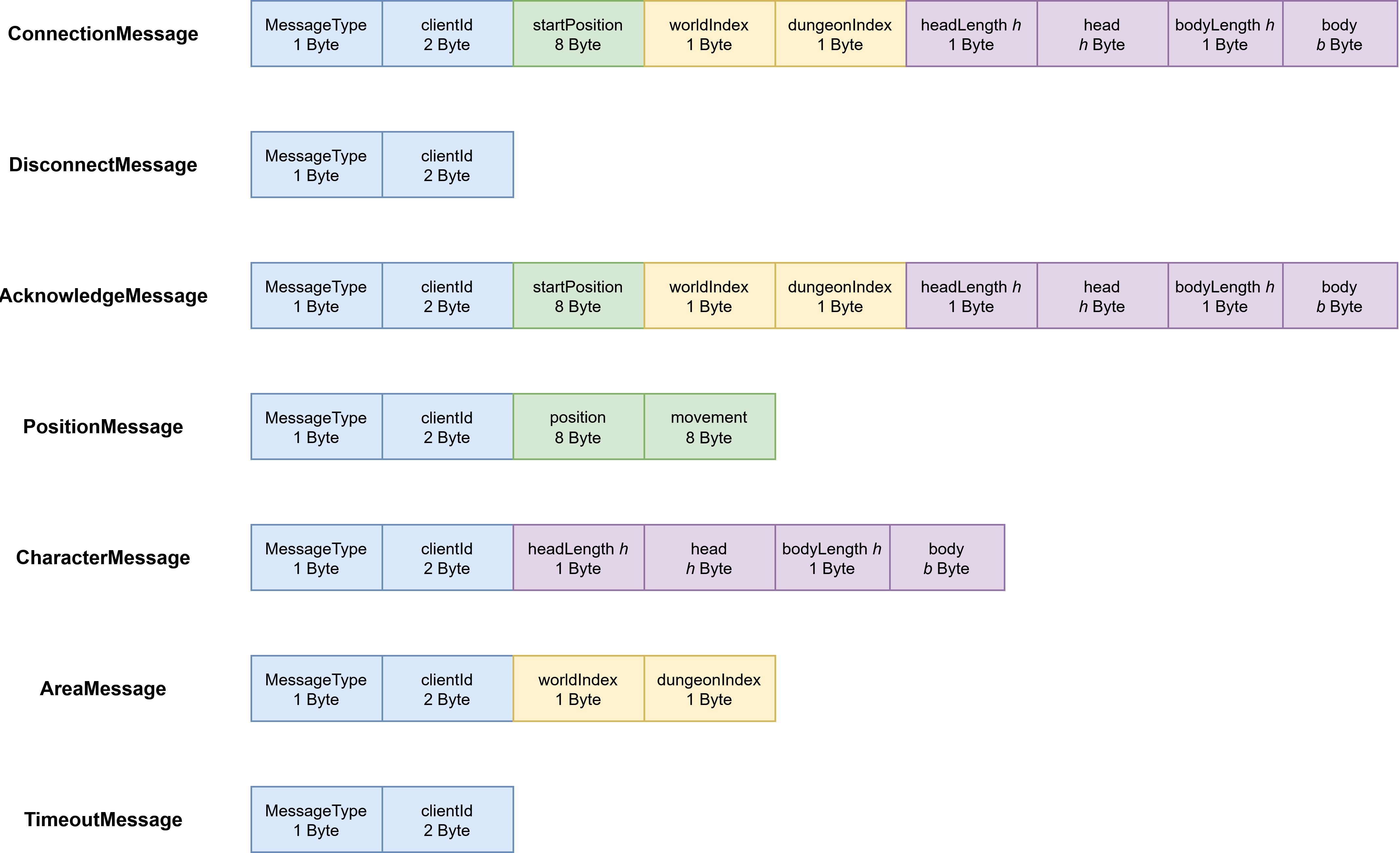

Protocol Data Unit (PDU)

Typical Message Exchange Sequence

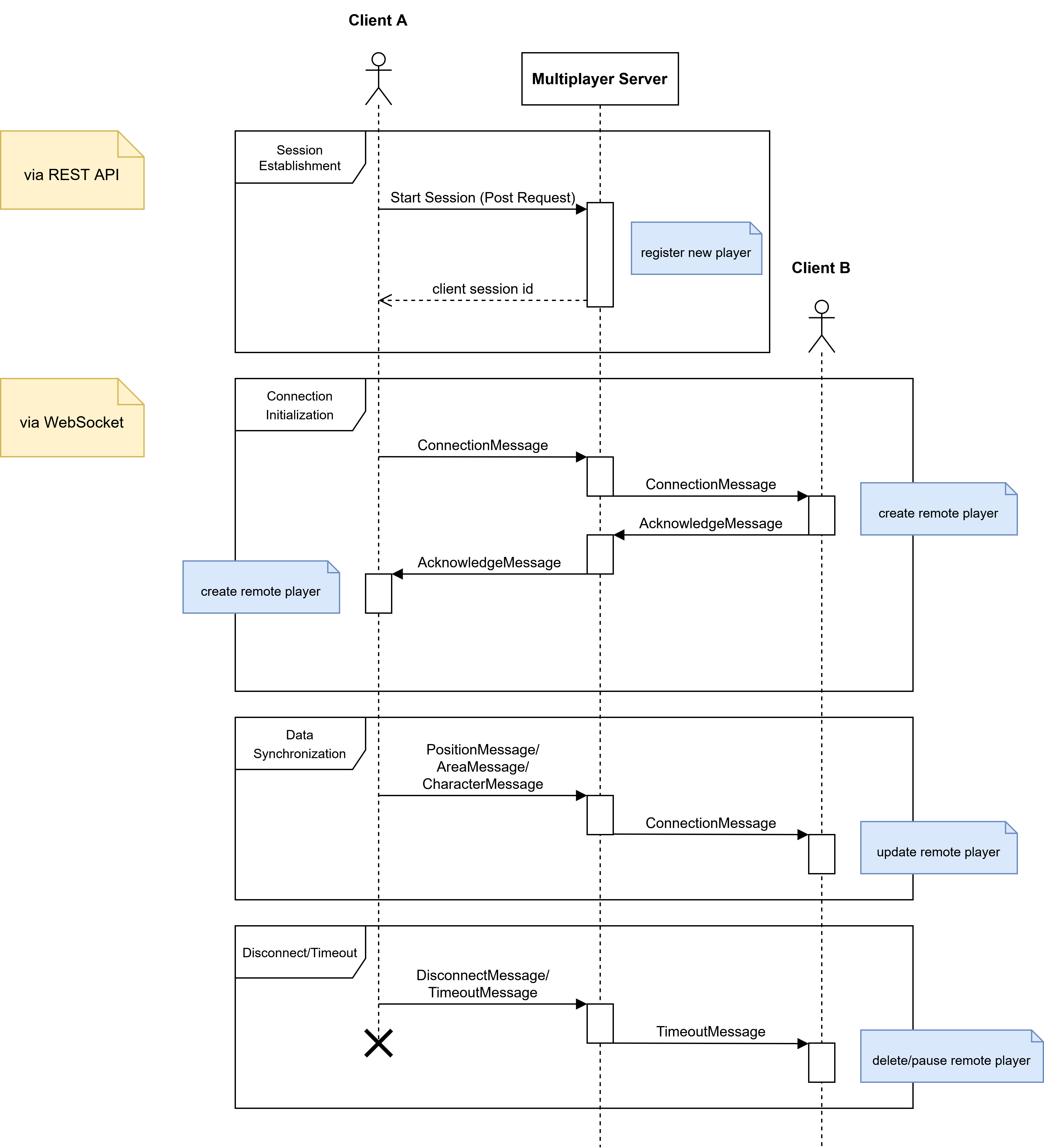

Connection and disconnection to the server requires sending a specific combination of messages. The sequence diagram below illustrates a typical message exchange between two clients connected with the multiplayer. Note that in this case, player B has already established a successful connection.

Development

Getting Started

Install Unity Version 2021.3.2f1 (LTS).

Overworld

Clone the repository

git clone https://github.com/Gamify-IT/overworld.git

multiplayer-backend

Clone the repository

git clone https://github.com/Gamify-IT/multiplayer-backend.git

Install the dependencies

npm install

Build and Run

Build the unity project like described in this manual.

To run the multiplayer server locally with IDE features and all necessary dependencies, start the dependencies via docker:

docker compose -f docker-compose-dev.yaml up

Then start the frontend with:

npm run dev

You can now access the game at localhost.

Tests

There are a few tests to check system performance and feature accuracy.

Unique ID generation

The generation of new client session ids is tested for:

• uniqueness

• reuse after release

• error for releasing invalid id

• error for unavailable ids

Known Design Flaws

• No updating of remote players if player is in pause menu (since time and hence physics is paused)

• Outfit is sent as two strings (body, head), better would be an efficient byte coding, allowing unique outfit determination and reconstruction

• Lobbys might improve user experience and network traffic
