General architecture¶
Table of contents¶
Component structure¶
In general, Gamify-IT can be split up into three main components: the Overworld, the Lecturer Interface, and the Minigames.
Purpose:
minigame: A small game to learn something by playing
overworld: consists of areas you can walk around in, interact with your environment or start minigames
lecturer interface: The allmighty configurator to configure what happens where in the overworld, or to set what is displayed in the minigames.
Every of these services has its own backend, except the lecturer interface whose backend is the overworld backend as well. You can inform yourself about all these services in detail here.
Diagram inconsistencies¶
For simplicities sake, the diagram above omits a few things:
it trades formal correctness for understandability
actually, the backends don’t send the data without being asked but rather the frontends query the backends
when a minigame completes, control is returned to the overworld
when a minigame run is finished, the respective minigame backend lets the overworld backend know about that as well
Typical user procedure¶
As you can see, the user first has to login, and is then forwarded to the overworld, where he can then at some point start a minigame and finish it.
Overworld data model¶

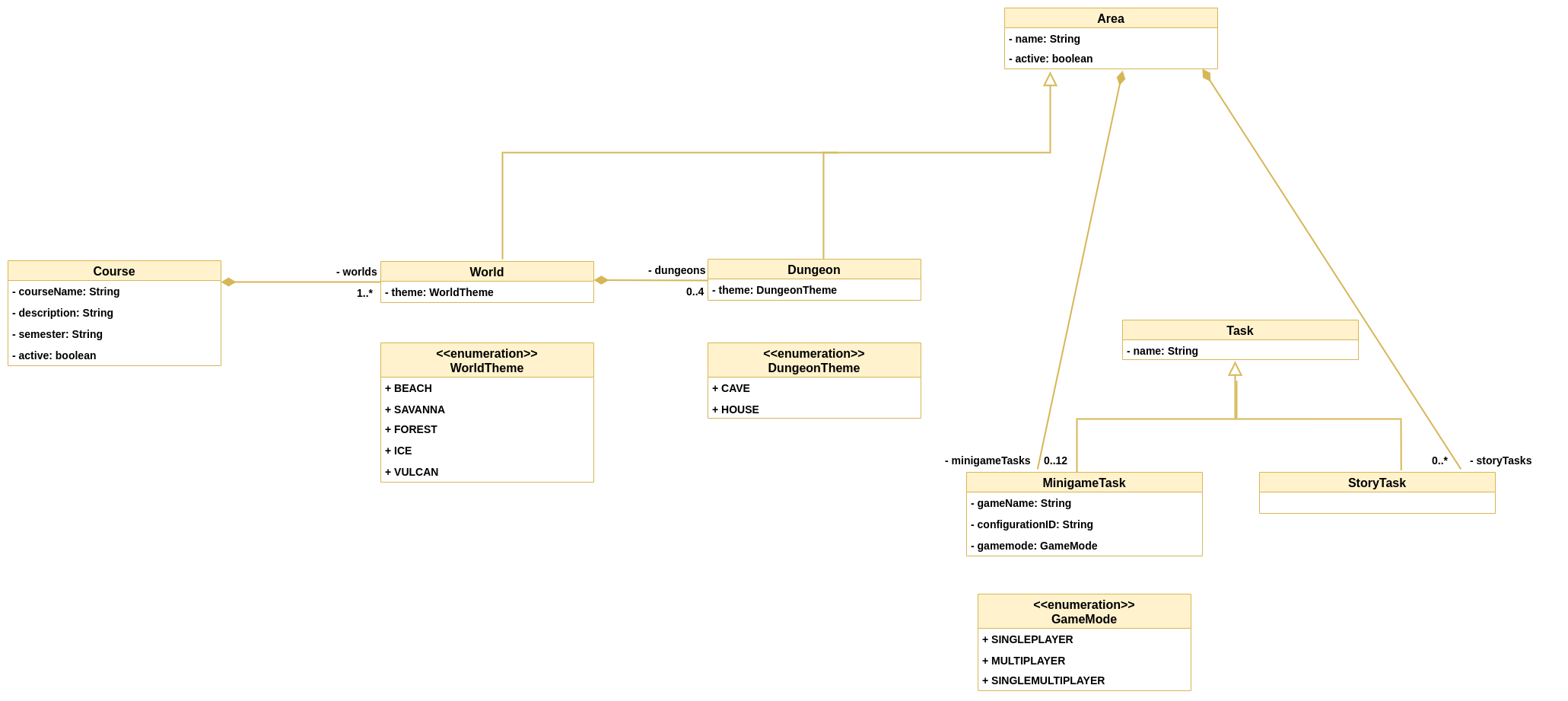

Another good overview over the structure of Gamify-IT can be seen in the data model of the overworld backend:
As you can see, the course is the top most level.
Each course can now have a number of worlds, who in turn can have a number of dungeons.
All types of areas can have NPCs and minigames.
Alternative component diagram¶
The following is an alternative component diagram which is more formally correct, but also a lot harder to read:
